Industrial Control Panel Component Breakdown
Completed August 5, 2025
We build control panels with top-tier industrial components that are engineered for uptime, safety, and long-term performance. Our latest customer build exemplifies this commitment, showcasing a robust design tailored for harsh industrial environments.
This project integrated advanced power distribution, protection, and automation hardware, ensuring reliable operation and precise control. From high-performance cooling to sophisticated motor control, every element was selected for its proven track record and ability to exceed expectations in the field.
The human-machine interface provides real-time monitoring, enhancing operational efficiency and safety. We are dedicated to delivering control panels that not only meet specifications but also provide lasting performance and peace of mind.
Highlights
- Top-tier industrial components ensure maximum uptime and long-term performance.
- UL Type enclosure and galvanized back panel provide robust protection for harsh environments.
- Integrated rotary disconnects and circuit breakers enhance safety for lockout/tagout procedures.
- CompactLogix controller and distributed I/O modules offer scalable and efficient automation.
- PanelView Plus HMI delivers real-time system monitoring and intuitive operator control.
Featured Components
Rockwell Automation (Allen-Bradley)
- 194R Series Rotary Disconnect Switches
- 1489 Series Circuit Breakers
- 1606-XLB240E Industrial Power Supply
- 100-C Series IEC Contactors
- 140MT Series Motor Protection Breakers
- 1492 Series Terminal Blocks and Accessories
- 700-HLT1U24 Relay
- 1769-L33ER CompactLogix Controller
- 1769-PA4 / 1769-ECR Power Supply and End Cap
- 1734 Series Distributed I/O Modules (AENT, IB8, OW4, OE4C, TOPS, IT2I, TBCJC, EP24DC)
- 2711P-T12W21D8S PanelView Plus HMI
Schneider Electric

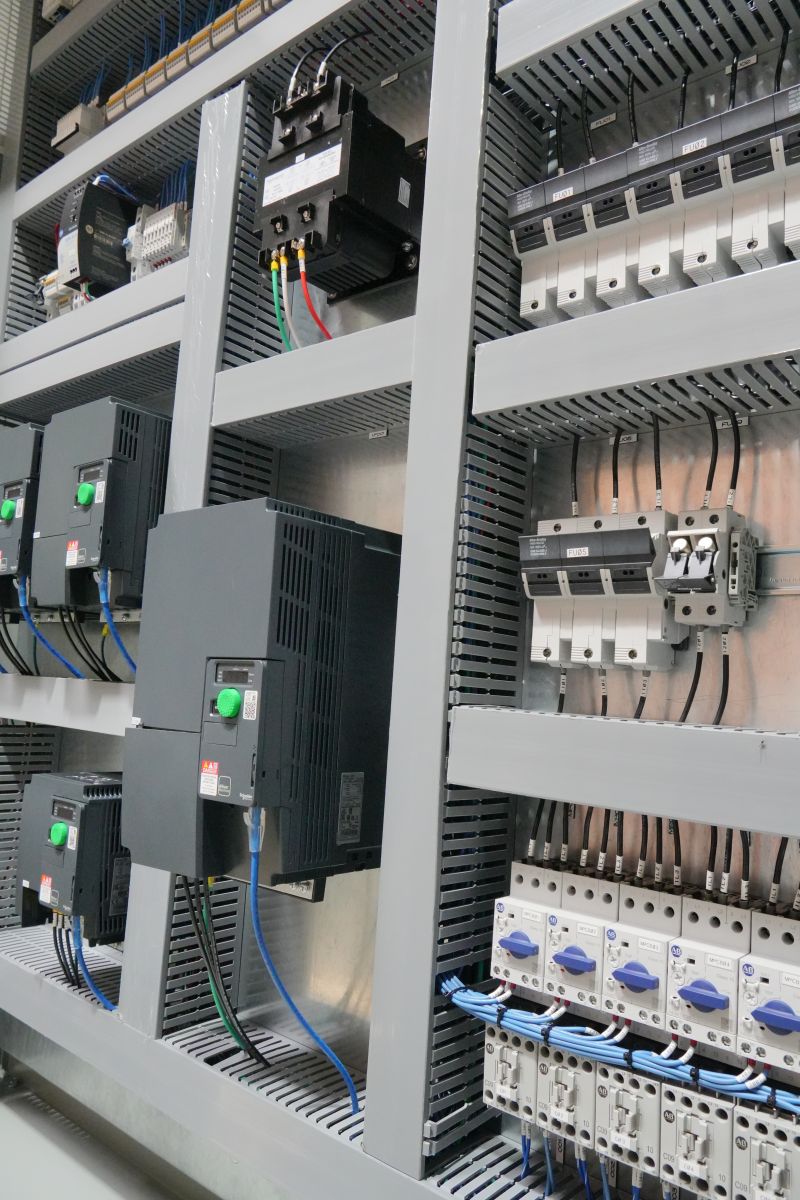

- ATV320D11N4C / ATV320U40N4C / ATV320U55N4C Variable Frequency Drives
- VW3A3616 / VW3A3600 Drive Accessories
Saginaw Control and Engineering

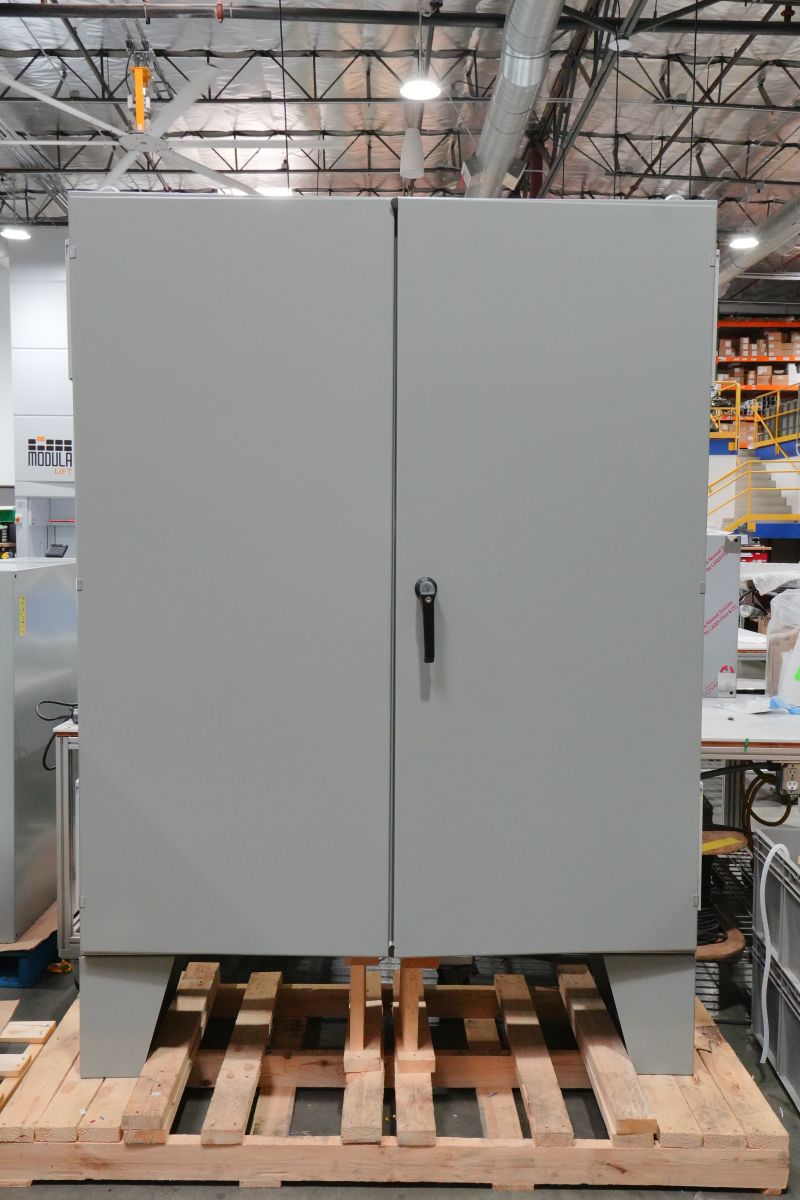

- SCE-726016ULP UL Type Enclosure
- SCE-72P60GALV Galvanized Back Panel
nVent HOFFMAN
- HF1316414 / HG1300404 Cooling Fans and Filters
- THERM16F Thermostat
- CEL550 / CELC3001PB Internal LED Lighting Kits
- ALFSWD Door Switch
Socomec Group
- 194R-HM4 / R8 / LNC31 Switch Disconnects
Mersen
- AJT110, ATQR10, ATQR30 Class J Fuses
- MPDB66583 / MPDBC6667 Power Distribution Blocks
- A4J10 / A4J15 / A4J30 Fuse Holders
Eaton
- GMA-2-R / GMA-4-R / GMA-6-R Compact Fuse Holders
Siemens
- EC2GB12 Circuit Breaker
Phoenix Contact
- 1085255 DIN Terminal Block
