Industrial Lighting Control System
Industrial Lighting Panel
Completed July 24, 2025
An industrial lighting panel is the backbone of lighting control in factories, warehouses, and other commercial or industrial spaces. It manages and distributes power to lighting circuits — allowing operators to control multiple lighting zones, improve energy efficiency, and automate lighting schedules.
Whether you're lighting a production floor, a machine bay, or safety zones, these panels ensure consistent illumination and easy troubleshooting.
This robust industrial lighting panel system is designed for safety, reliability, and ease of use — delivering high performance and field-proven durability.
Highlights
- Manages and distributes power to multiple lighting circuits
- Enables control of multiple lighting zones and automated lighting schedules
- Built for easy service access and heat management
- Delivers high performance in demanding industrial environments

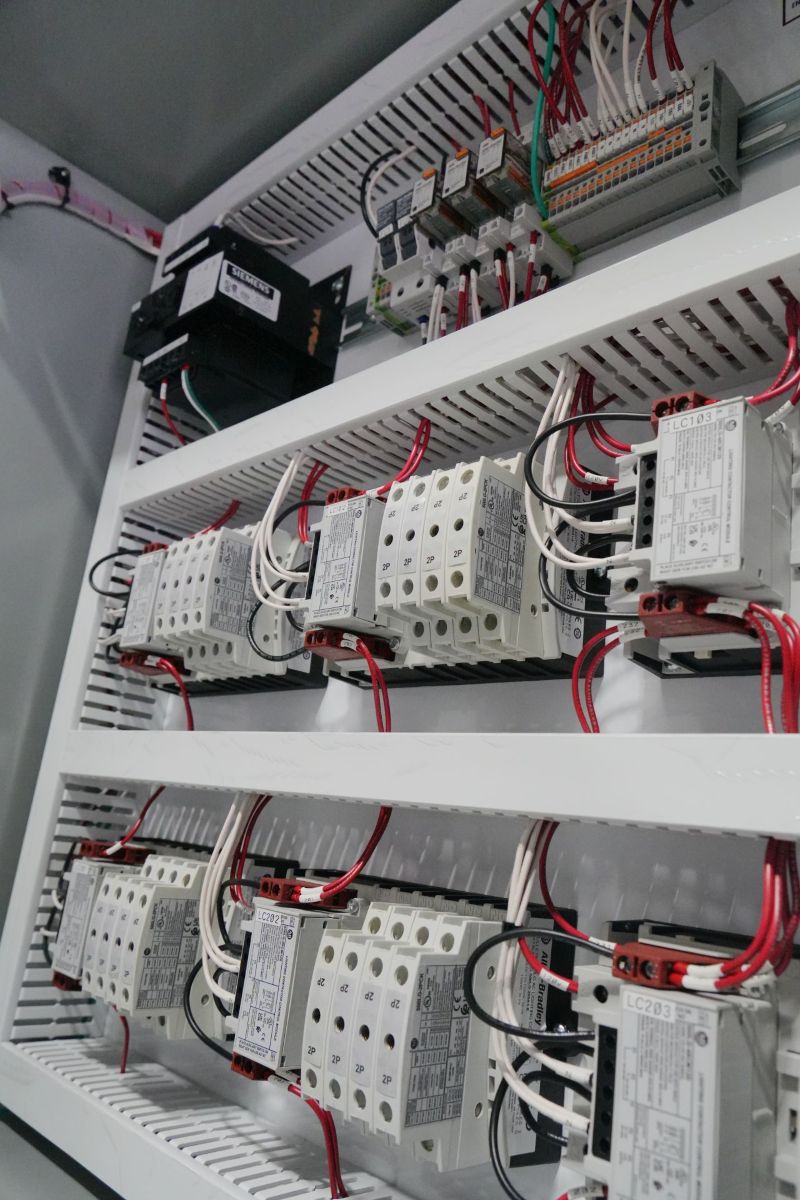

Featured Components
Siemens
- MT0500F transformer
Rockwell Automation (Allen-Bradley)
- 1492-FB1C30-L fuse holder
- 500LG-142C contact block
- 700-HN262 relay base
- 700-HF32A1-3-4 120V relay
- 500LG-200A1-E lighting contactors
- 500LG-48CM120 wire control conversion module
- 500LG-2PCK 2 pole power pole
- 1492-P3 terminal blocks
- 1492-PG3 ground terminal blocks

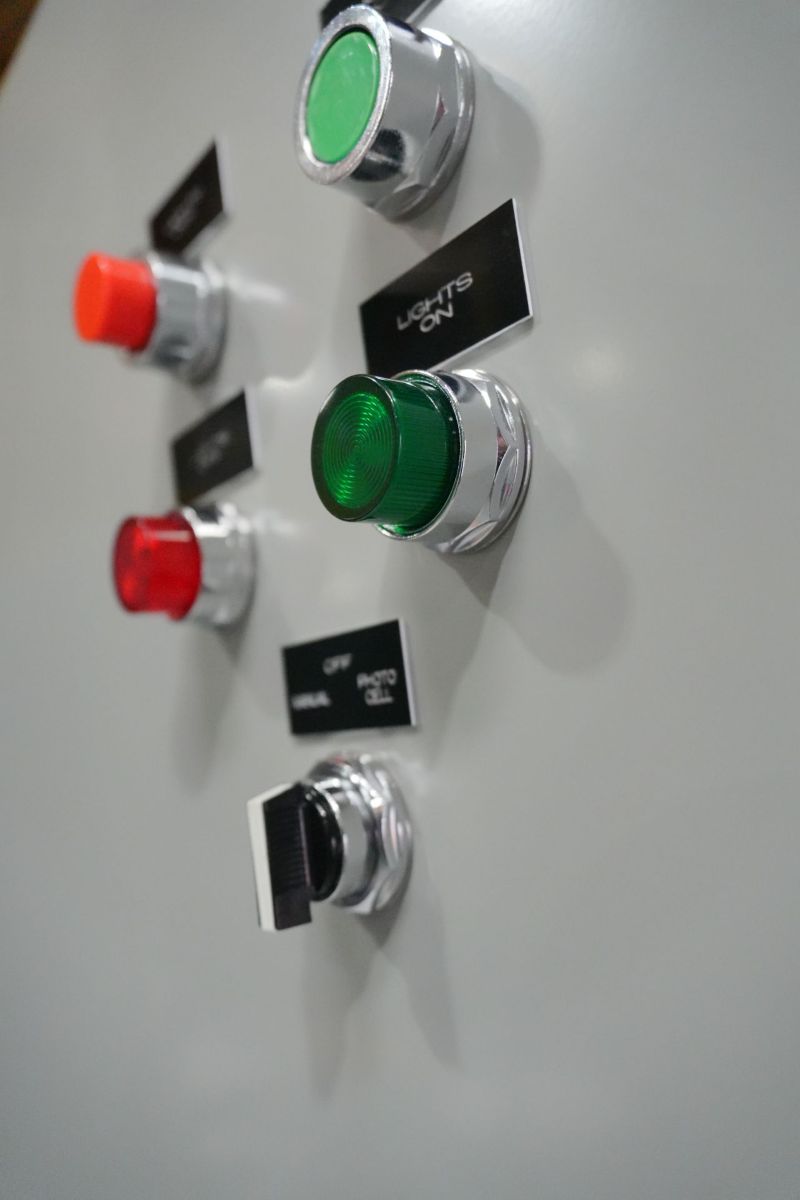

Push Buttons & Controls
- 52PM8B2 red push button
- 52PM8A3 green push button
- 52PL4E2XB red pilot light
- 52PL4E3XB green pilot light
- 52SA2BAB selector switches
Mersen
- ATDR5 5 AMP fuse
- ATDR6 6 AMP fuse
nVent HOFFMAN
- Back panel
- Enclosure
