Lift Station Control
480V/3Phase Pump Panel
Designed and built to optimize lift station operations, ensuring efficient wastewater management and flood prevention. This 480V/3Phase Pump Panel is engineered to monitor, control, and protect pumps while providing seamless automation for reliable water movement.
By integrating Rockwell Automation, Emerson, nVent HOFFMAN, Macromatic, and other industry-leading components, this pump panel delivers maximum reliability, efficiency, and protection for lift stations.
Highlights
- Manages wastewater movement efficiently from lower to higher elevations
- Monitors and protects pumps against overloads, phase loss, and voltage surges
- Automates pump cycling to balance wear and extend lifespan
- Provides real-time data and control via PanelView Plus 12" HMI
Featured Components
Rockwell Automation (Allen-Bradley)

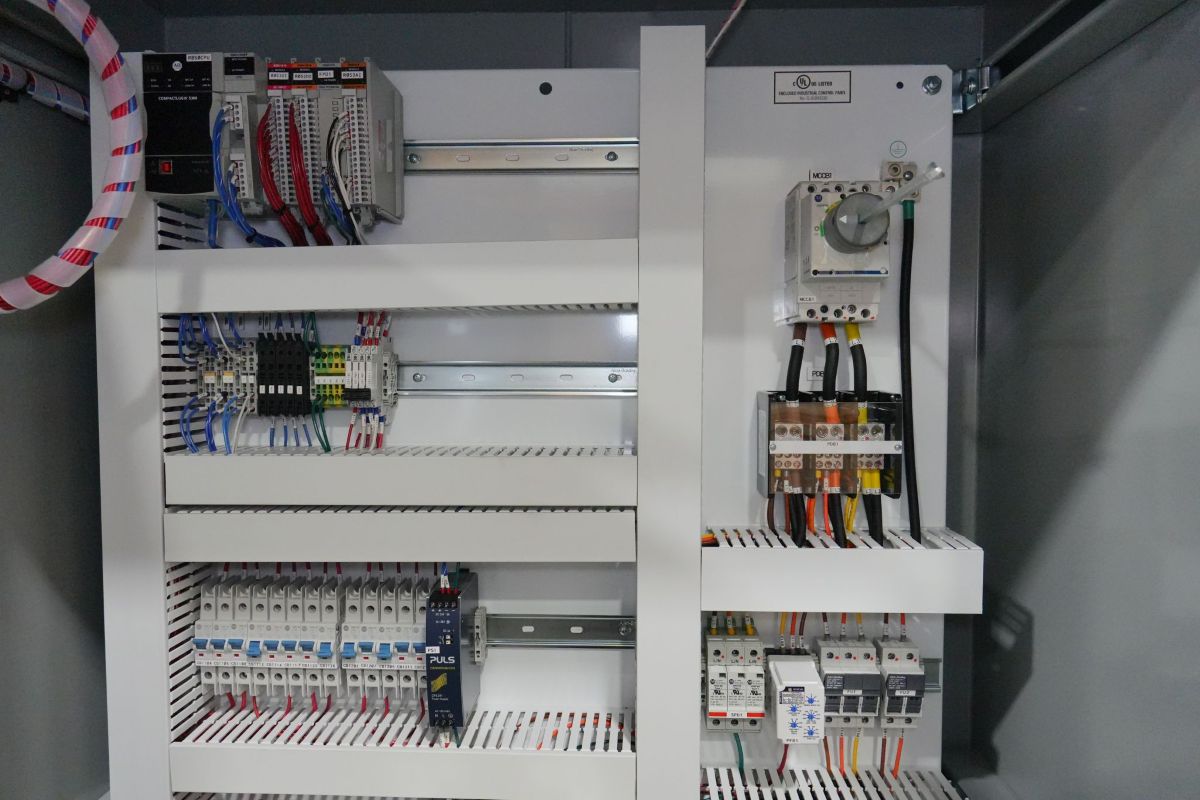

- 5069 CompactLogix PLC for high-performance control

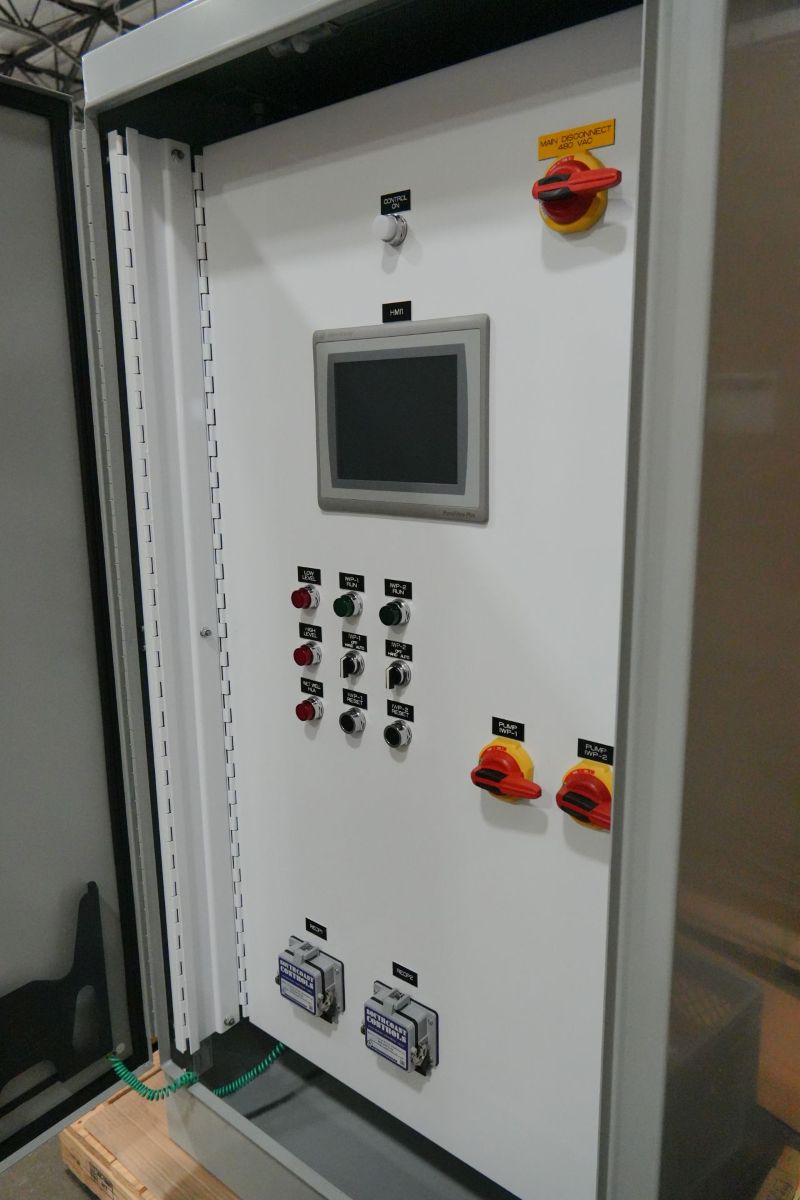

- PanelView Plus 12" HMI for real-time status and control
- 140G Molded Case MCCB for electrical fault protection
- 4983-DS480-403 Surge Protective Device
- Allen-Bradley Starter for reliable motor control
Emerson
- UPS for continued operation during power fluctuations
Macromatic (Trystar)
- Phase Loss Relay for phase loss detection and prevention
- Combination Single Channel Seal Leak / Over Temperature Relay
AcuAMP
- AC Current Transducer for accurate current monitoring
Hammond

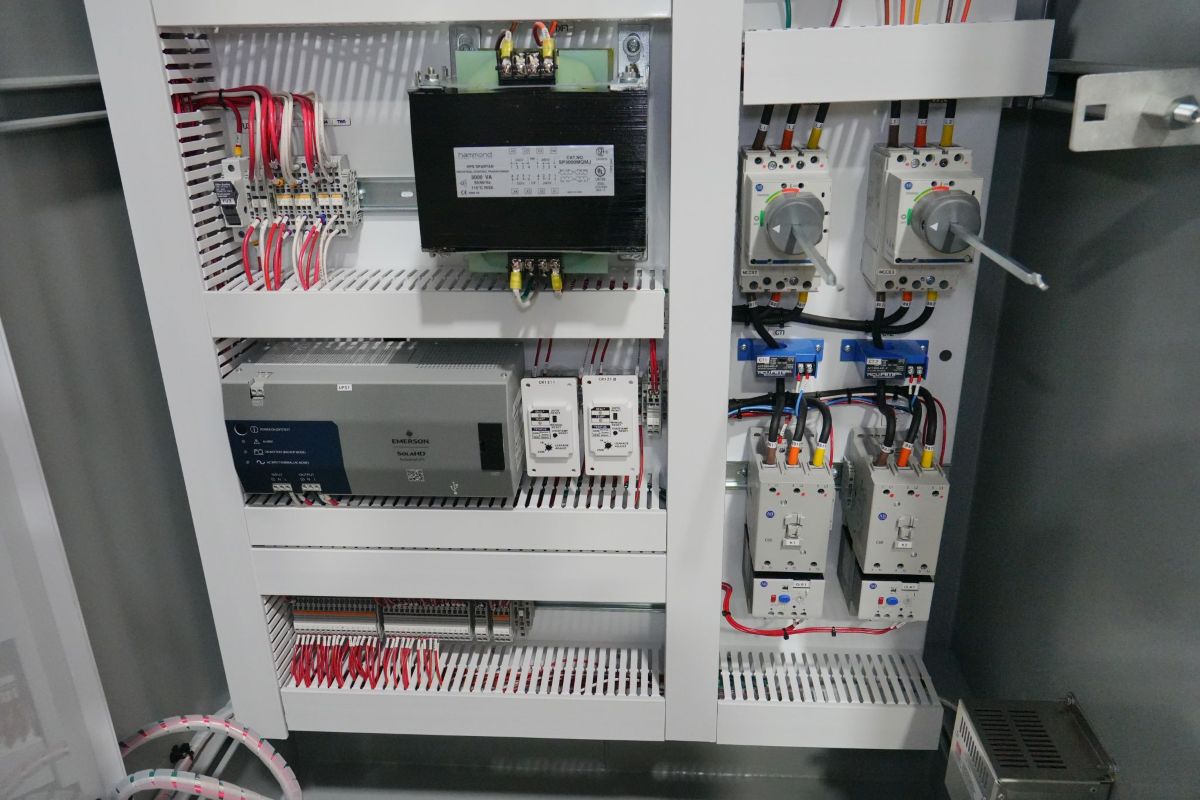

- 3KVA Multi Tap Transformer for voltage conversion
nVent HOFFMAN

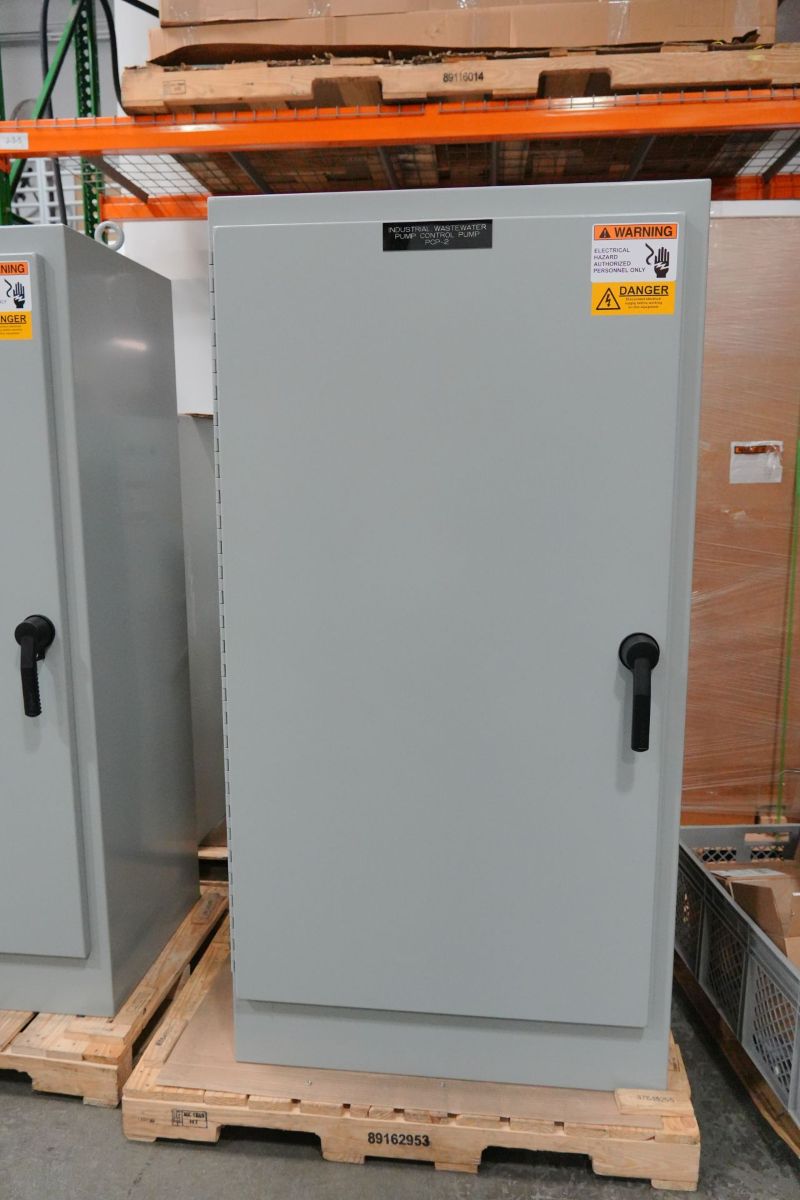

- NEMA 4 3PT Latch Enclosure - durable and weatherproof
- Swing Outdoor for easy maintenance access
