Amusement Park Safety Systems

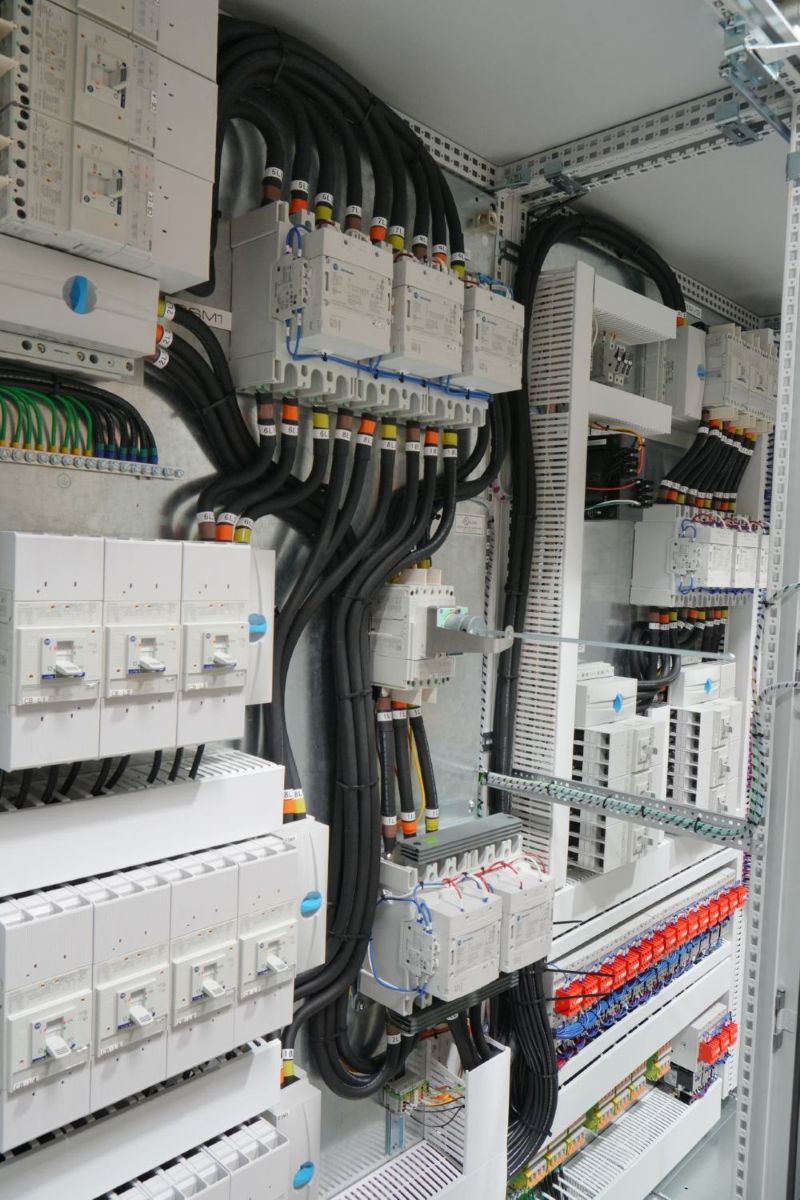

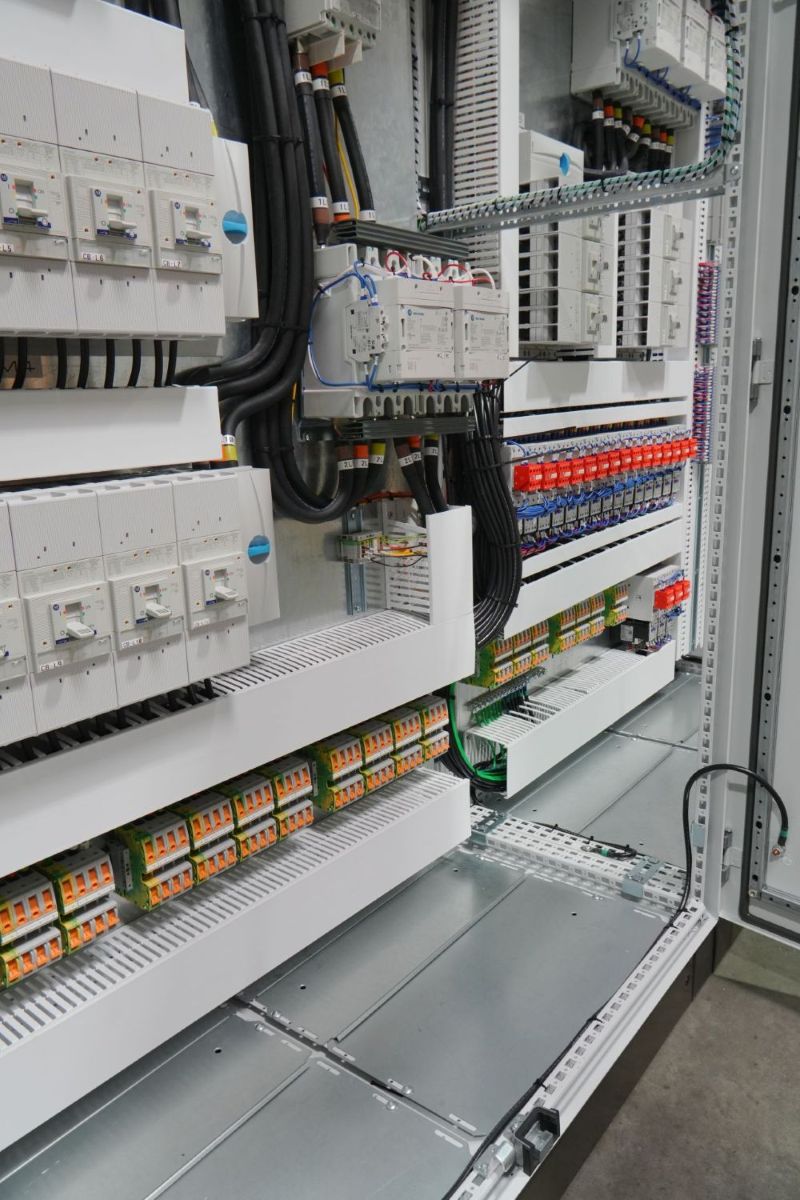

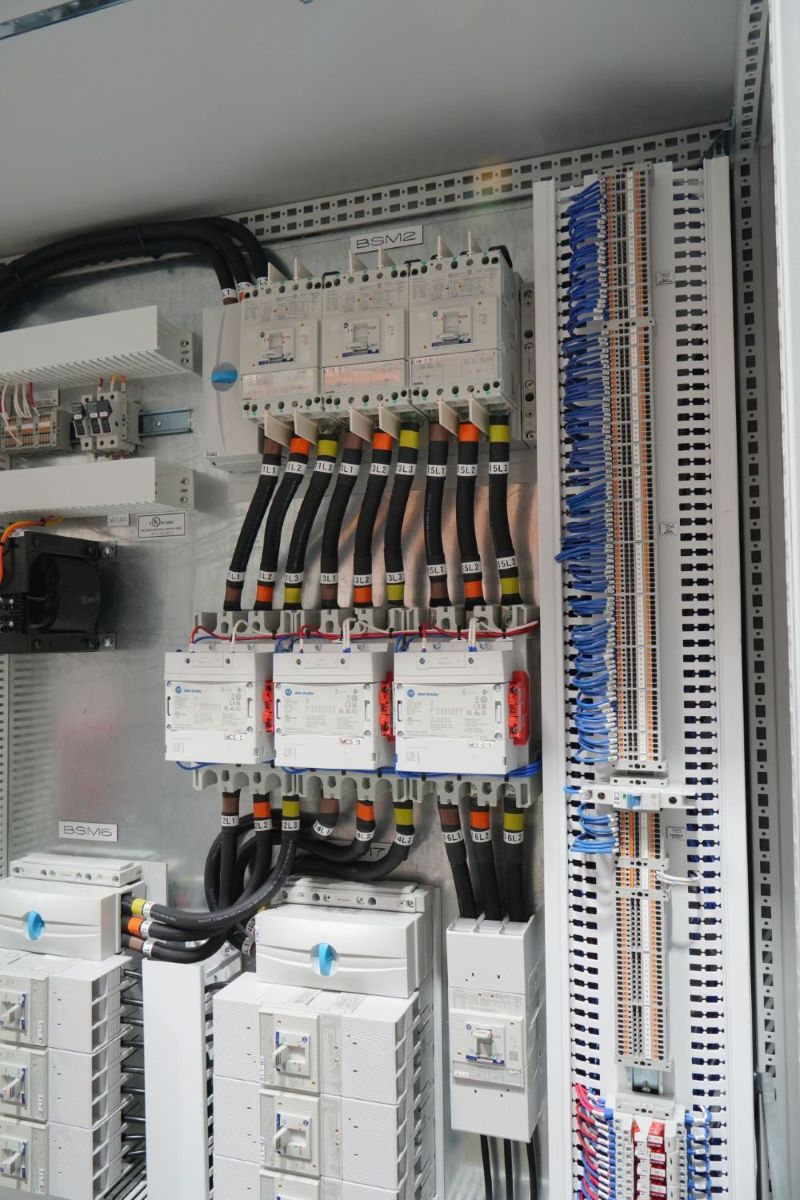

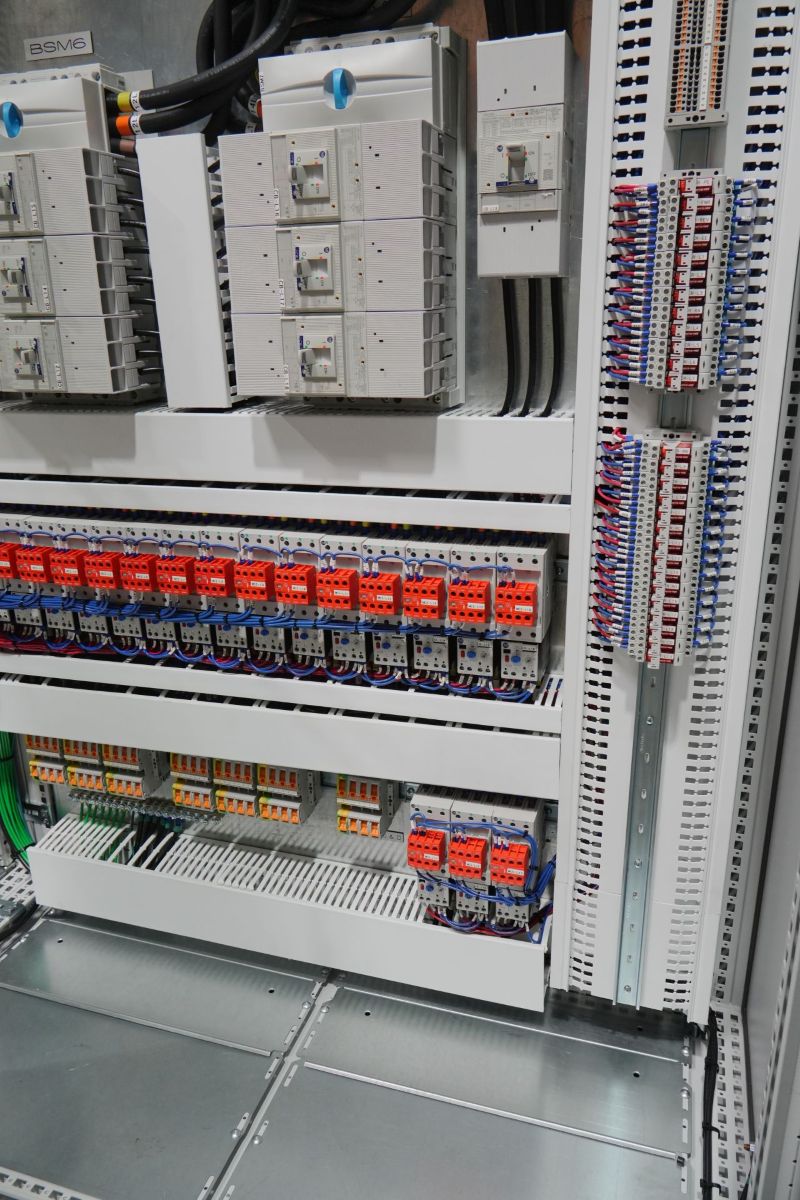

Roller Coaster Control Panel
Completed May 14, 2025






Every scream and every twist of a roller coaster is driven by a control system you don't see.
We just completed a control panel build for an amusement park project. Built to deliver long-term performance and safety in demanding environments, this control panel integrates top-tier components specified for high reliability.
Highlights
- Engineered to meet UL and NEC standards
- Designed with fused protection, grounding, and reliable enclosures
- Built to ensure safe operation in public, high-demand environments
Featured Components
Rockwell Automation (Allen-Bradley)
- Breakers (140G series)
- Contactors (100S series)
- Overload relays
- Terminal blocks (1492 series)
- Handles and busbars
Mersen
- ATDR5 (time-delay fuse)
- ATMR12 (fast-acting fuse)
Grace Technologies
- R-3MT-VI-KIT voltage presence indicator
- R-3W-L-KIT voltage presence indicator
nVent HOFFMAN

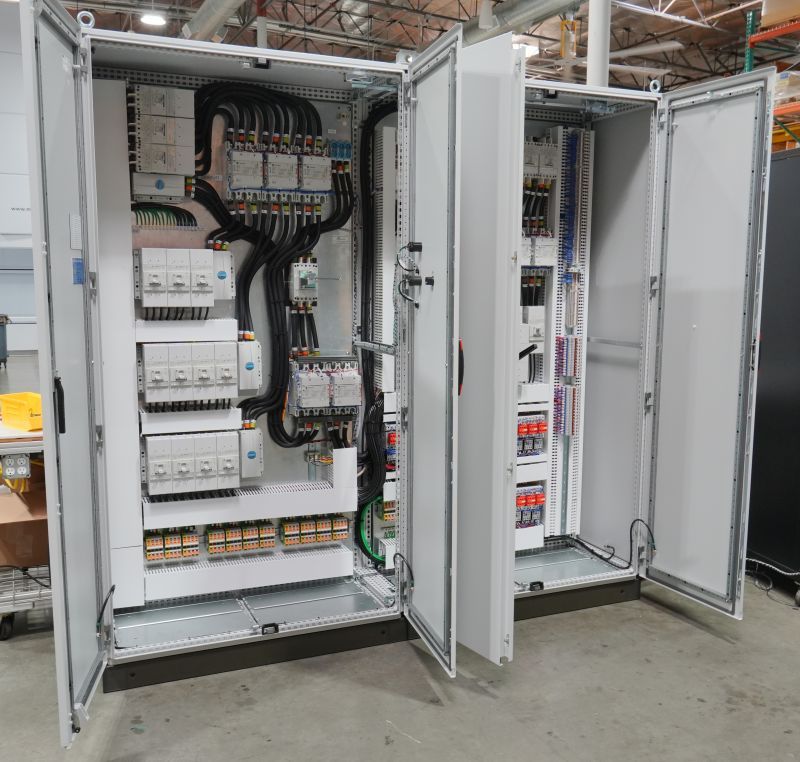

- MCD22126R5 free-standing dual-door enclosure
- SPM2206R5 side panels
- PF1120 plinth
- PS1060 plinth side panels
- CCBS02 wall-mount brackets
- LFA levelling feet
ABB
- ADR21-21 mechanical ground lug
nVent ERIFLEX / ERICO
- SBF250 power distribution block
- 534007 flexible busbar
- EB-12 earthing bar
- MBJ5020010 bonding braid
Panduit
- DRD44LG6 DIN rail wiring duct
- F-series wire ducts (F6X4LG6, F4X4LG6, F3X4LG6, F2X4LG6, F1X4LG6)
