Water Theming Control Panel
Completed October 30, 2025
We designed and built a specialized control panel for water-theming attractions, ensuring precise synchronization of pumps, valves, and effects. This system delivers smooth performance and maintains critical safety standards for complex water features.
Our team engineered this panel to thrive in challenging humid and chlorinated environments. It features full Schneider Electric automation housed within a rugged nVent HOFFMAN fiberglass enclosure, rated NEMA 4X for superior protection.
This comprehensive solution seamlessly integrates power distribution, circuit protection, and advanced PLC control. Developed entirely in-house by our expert engineering team, it guarantees precise coordination across all water-theming effects.
Highlights
- The panel is specifically engineered for exceptional reliability in high-moisture and outdoor environments.
- Our UL-508A compliant construction ensures both superior safety and robust performance.
- We achieved seamless integration of power distribution, protection, and advanced PLC control within a single system.
- In-house design and build by our engineering team guarantees precise coordination for complex water-theming effects.
Featured Components
Schneider Electric / Square D
- GS2 series disconnect switch and handle assembly
- GV2 series manual motor starters
- ABLS series 24VDC power supply

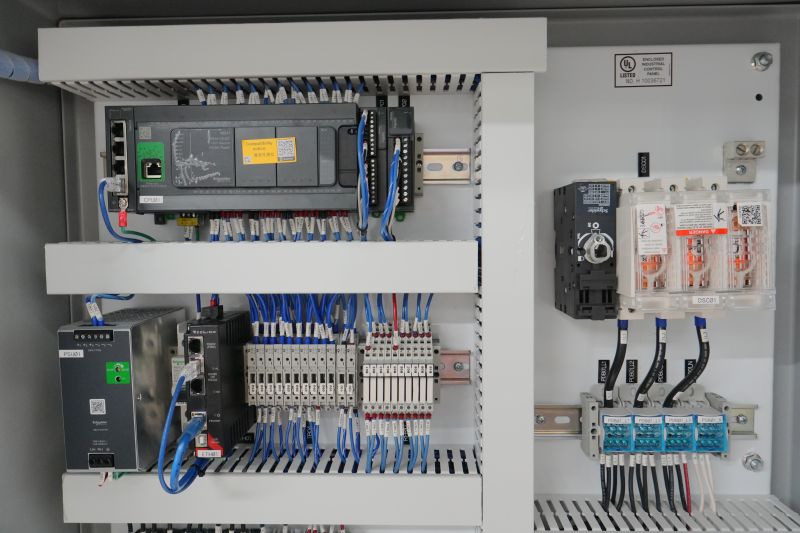

- Modicon M241 PLC with Ethernet
- TM3 and TM4 series I/O and communication modules

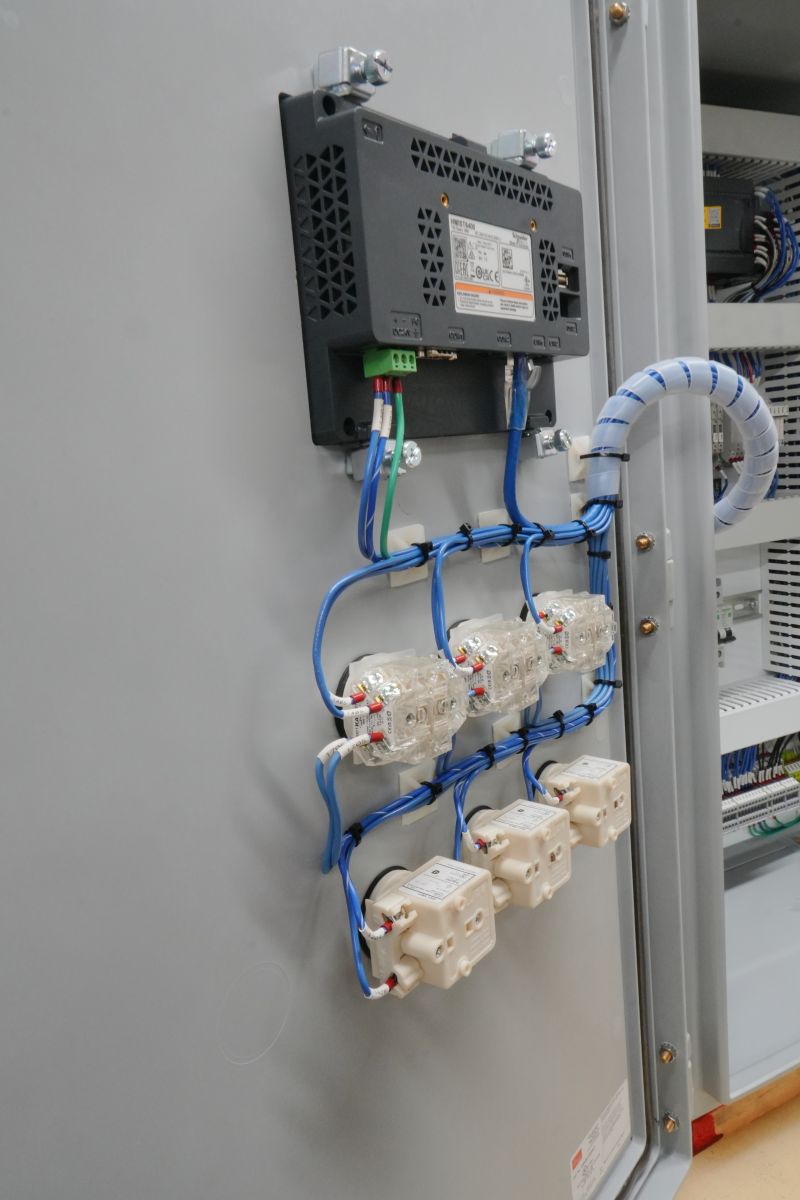

- Harmony HMI touchscreen operator interface

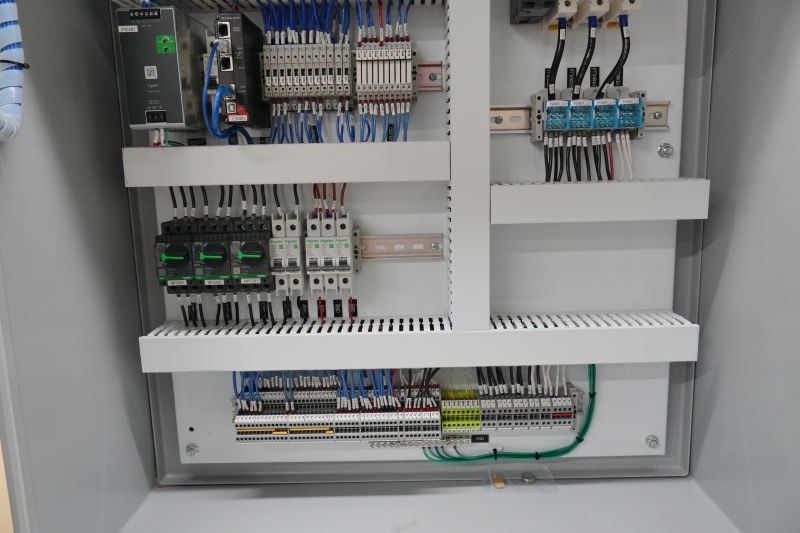

- M9F series miniature circuit breakers
- NSYTRV / NSYTRACE terminal block system
- 9001SK series selector switches and pilot lights
- NSYEBAP series enclosed power blocks
nVent HOFFMAN
- Fiberglass NEMA 4X enclosure with PowerGlide latch
Mersen
- AJT and GGM fuse series for circuit protection
